Decoustics LightFrame
A modular luminous acoustic panel system engineered for uniform illumination, sound absorption, and full plenum accessibility. Large-format panels with near-seamless joints support clean architectural ceilings and walls in commercial and institutional interiors.

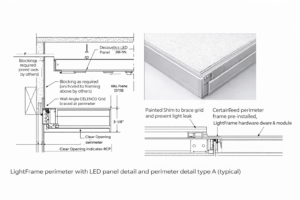

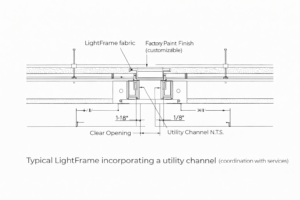

System details and installation diagrams
Panel construction and specifications
LightFrame is a factory-engineered, panelized luminous acoustic system. Each panel is delivered ready for installation, supporting predictable illumination quality, coordinated integration, and maintenance access.

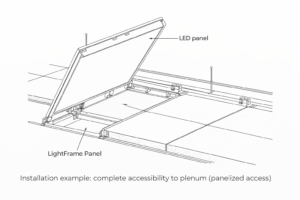

- Panelized construction for complete accessibility to plenum
- Near-seamless joints with butt-joint or reveal configurations
- Optimized fabric combination for light transmission without color shift and for even illumination
- Ceiling and wall installation compatibility
| Panel depth | 3-1/8″ (80 mm) |
| Maximum panel size | Up to 5′ × 10′ (1524 × 3048 mm) |
| Typical panel weight | Approx. 20 lb (9 kg) for 5′ × 5′ panel |
| Joint configurations | Butt joint or reveal joint |
| Light transmission | Up to 83% |
| Light reflectance | Up to 85% (ASTM C609) |
| Acoustic performance | NRC up to 0.65 (E400 mounting: NRC 0.65) |
Performance and compliance
Lighting performance
| Light transmission | Up to 83% |
| Light reflectance | Up to 85% (ASTM C609) |
| Illumination quality | Uniform diffusion with no visible lamp imaging when properly designed |
Acoustic performance
| Noise Reduction Coefficient (NRC) | Up to 0.65 |
| Example mounting condition | E400 mounting: NRC 0.65 |
| Acoustic tuning | Higher absorption achievable with increased depth |
Code compliance and safety
- Fire performance: Class A flame spread rating (ASTM E84)
- Seismic compliance: Zones A, B, C, D, E, F
- VOC emissions tested per CDPH Standard Method v1.2 (Berkeley Analytical)
Sustainability
- Recycled content: up to 60%
- Environmental Product Declaration (EPD) available
- Low-emitting materials supporting healthy interiors
Specification and pricing support
Space Ceiling supports architects, designers, and contractors with layout assistance, budget pricing, and specification coordination. For accurate pricing, provide reflected ceiling plans (RCP), elevations, and scope notes (panel sizes, joint type, service integration).
Recommended submission package
- RCP and ceiling heights
- Panel module dimensions and joint preference
- Lighting intent (CCT / lumen targets if available)
- Service coordination: sprinklers, diffusers, speakers
- Project location and schedule constraints
